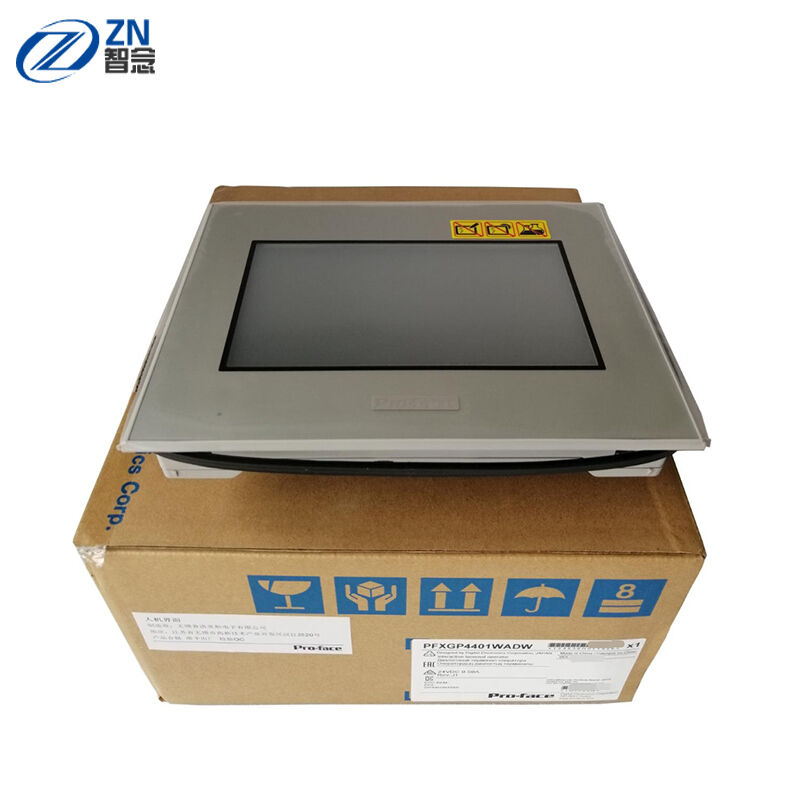

PFXGP4401WADW 7 Inch HMI Touch Screen 1 Year Warranty
PFXGP4401WADW 7 Inch HMI Touch Screen 1 Year Warranty
Lugar de origem
China/Japão
Marca
Proface
Número do modelo
PFXGP4401WADW
Detalhes do produto
Garantia:
1 ano
Pacote:
embalagem original
Formas de envio:
DHL,Fedex,EMS
Quantidade mínima:
1 peça
Número do modelo:
PFXGP4401WADW
Tamanho da tela:
7 polegadas
Termos de pagamento e envio
Quantidade de ordem mínima
1/pc
Preço
$200.00 - $300.00/Pieces
Detalhes da embalagem
Embalagem cartonada
Termos de pagamento
T/T, União Ocidental
Habilidade da fonte
10pc/por semana
Descrição do produto
PFXGP4401WADW 7 Inch HMI Touch Screen 1 Year Warranty
Display specifications
Display type
TFT Color LCD
Display size
7.0"
Resolution
800 x 480 pixels (WVGA)
Effective display area
W152.4 x H91.4 mm [W6.0 x H3.6 in.]
Display colors
65,536 colors (No blink) / 16,384 colors (Blink)
Backlight
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight service life
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)
Brightness control
8 Levels (Adjusted with touch panel or software)
Touch panel type
Resistive Film (analog)
Touch panel resolution
1,024 x 1,024
Touch panel lifetime
1,000,000 times or more
Language fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese, Simplified Chinese, Thai and Cyrillic can be added from the font setting of the screen editor. )
Character sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.
